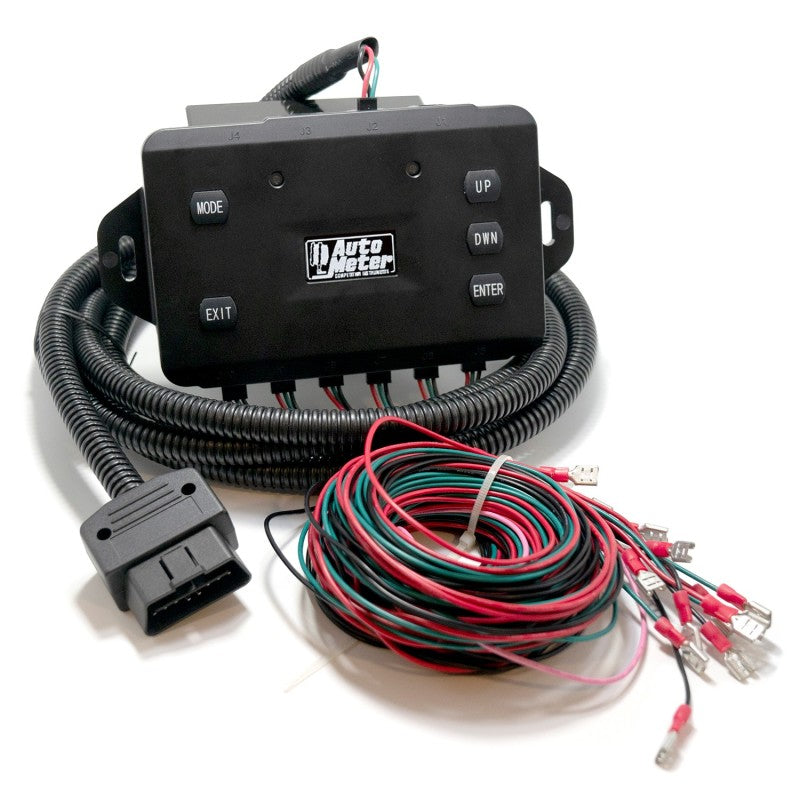

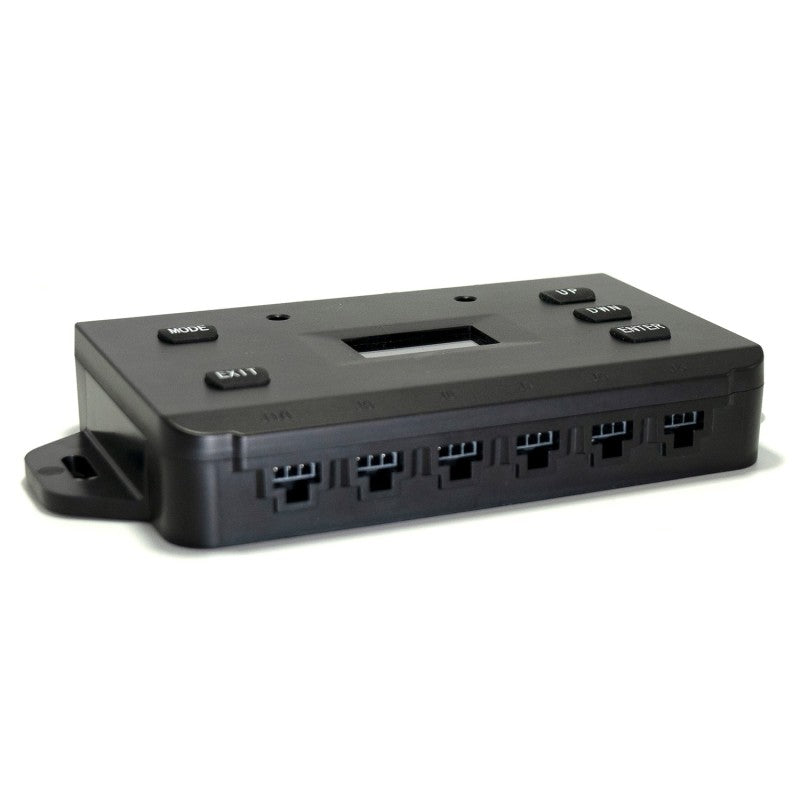

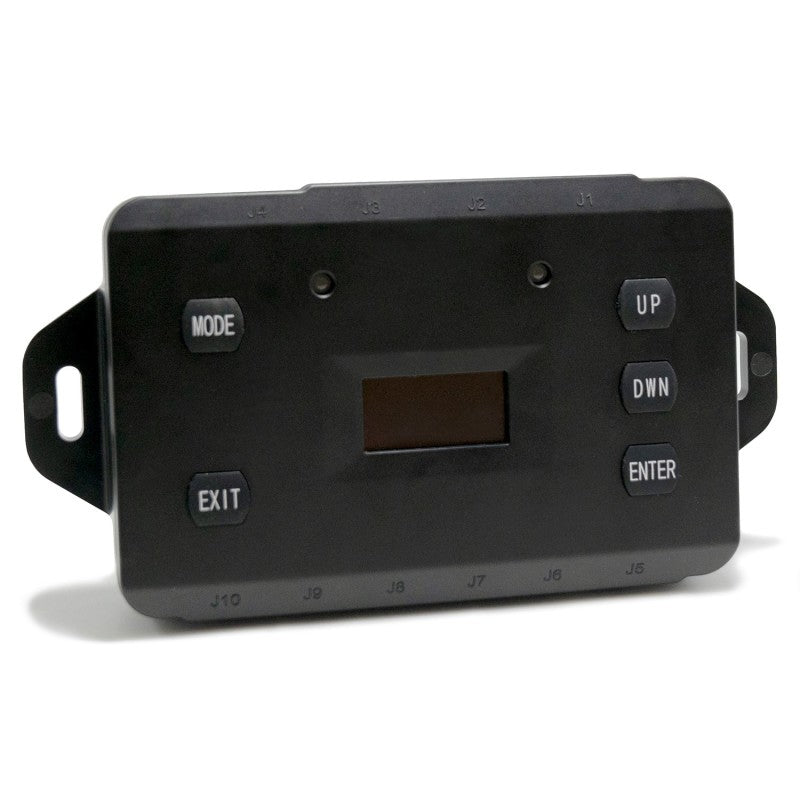

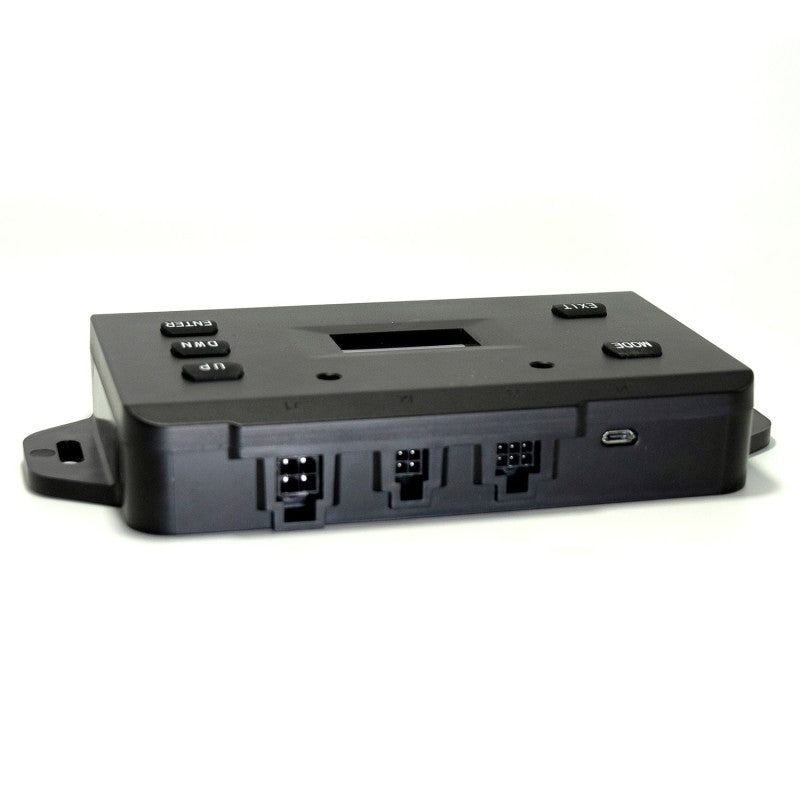

AutoMeter CAN Bridge - OBD-II Data Interface Module

The CAN Bridge from AutoMeter is the ideal solution to streamline adding gauges or an InVision LCD dash to OBDII engine and vehicle platforms (2008+). The intuitive CAN Bridge simply plugs into the diagnostic port and captures the existing sensor data and outputs up to six signals to drive AutoMeter InVision dashes or AutoMeter tachometers, electronic speedometers, as well as short sweep electric temperature, pressure, fuel level, and volts gauges on your vehicle. Quickly and easily setup your system to output the available parameters of your choice utilizing the module’s menu navigation buttons and OLED display. Simplify the next instrumentation installation on your ride with the advanced CAN Bridge system from AutoMeter!

• 6 total channels available – tachometer, speedometer, fuel level, temp, pressure (oil pressure PID usually not available and oil pressure will require a sender), & volts
• Simplifies instrumentation wiring and installation – no sensors to hookup, which means less wires to connect and no adapters to worry about
• Plug-n-play from OBDII to InVision LCD dashes and AutoMeter tachometers, electronic speedometers, and short sweep electric gauges

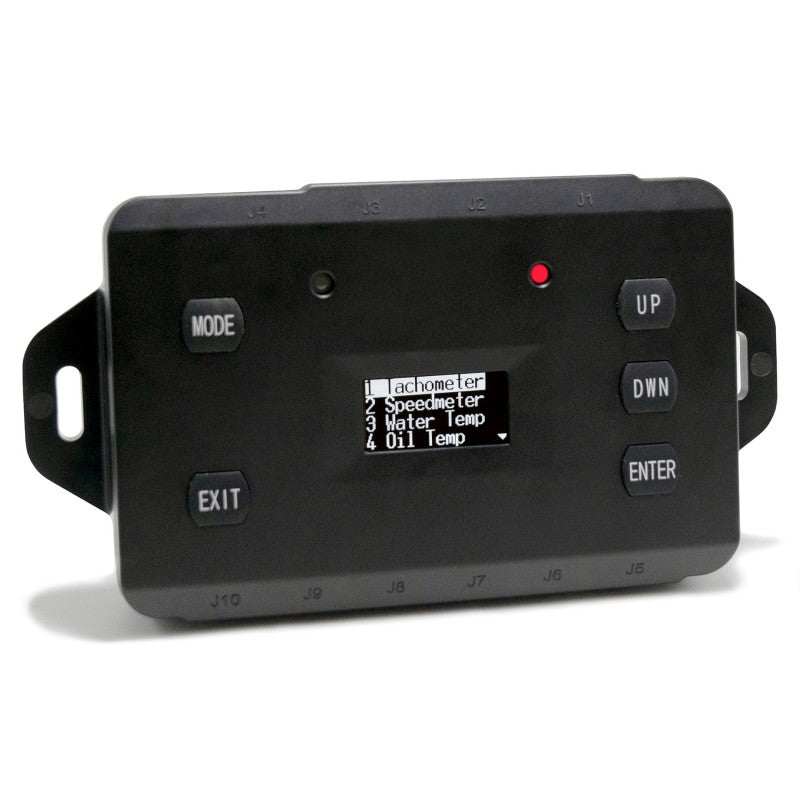

• Module includes OLED display and five push buttons to effortlessly navigate menus and program system for operation
• Sensor data must be present on the data stream to function, otherwise a discrete sensor must be used
• Works with most OBD-II applications which is standardized across all OEMs starting in 2008
• Fuel level output of 0 ohms empty and 90 ohms full
